Product Summary
The UPC29L33J-A is a low dropout regulator which has 100 mA capable for the output current. The variation of output voltage is 3 V, 3.3 V, 4 V and 5 V.
Parametrics
UPC29L33J-A absolute maximum ratings: (1)Input Voltage VIN: 16 V; (2)Internal Power Dissipation P: 700 mW; (3)Operating Ambient Temperature Range TA: –30 to +85℃; (4)Operating Junction Temperature Range TJ: –30 to +150℃; (5)Storage Temperature Range Tstg: –55 to +150℃.
Features
UPC29L33J-A features: (1)Low dropout voltage. VDIF ≤ 0.3 V; (2)Built-in overcurrent protection circuit; (3)Built-in thermal shut-down circuit.

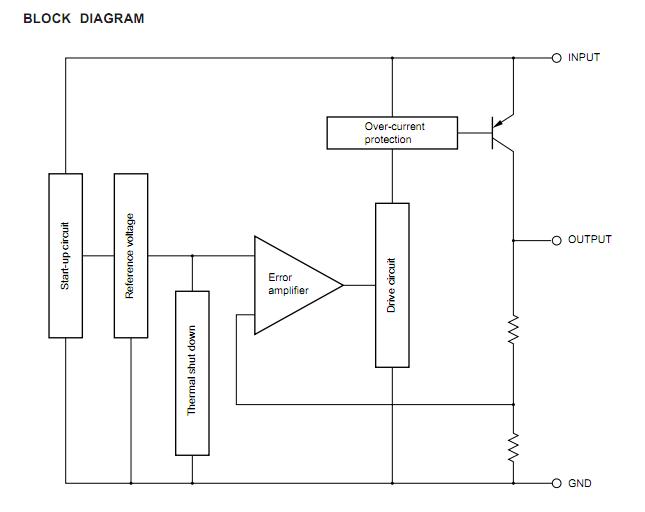

Diagrams
![]() |
