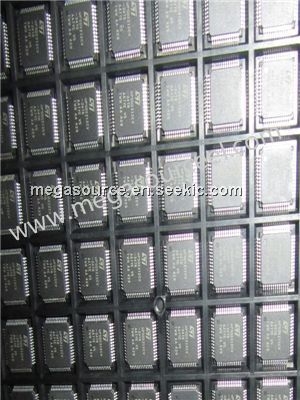

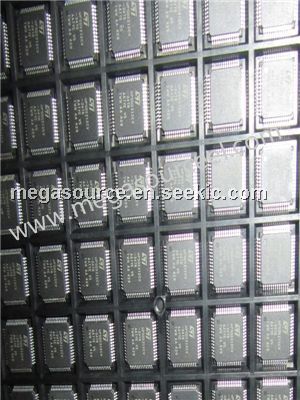

UPSD3212CV-24T6

flash programmable system device, -0.5 to 6.5V, 64kb, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $4.00~5.20 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 2 :	5.20 / Piece
2 ~ 500 :	4.00 / Piece

PartNumber:: UPSD3212CV-24T6

Brand:: STMicroelectronics - ST | Pack: QFP | D/C: 04+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. hellen's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-14

From Other Seller

Part Number:UPSD3212CV-24T6
US $4.00 - 5.20
Quantity:

piece

Product Summary

The UPSD3212CV-24T6 is flash programmable system device. The UPSD3212CV-24T6 has a modular architec-ture with two main functional modules: the MCU Module and the PSD Module.

Parametrics

UPSD3212CV-24T6 absolute maximum ratings: (1) Storage Temperature TSTG: -65 to 125 °C; (2) Lead Temperature during Soldering (20 seconds max.) TLEAD: 235°C; (3) Input and Output Voltage (Q=V OH or Hi-Z) VIO: -0.5 to 6.5V; (4) Supply Voltage Vcc: -0.5 to 6.5V; (5) Device Programmer Supply Voltage Vpp: -0.5 to 14.0V; (6) Electrostatic Discharge Voltage (Human Body Model) : -2000 to 2000V.

Features

UPSD3212CV-24T6 features: (1) Large 2KByte SRAM with battery back-up option; (2) Dual bank Flash memories; (3) Content Security: Block access to Flash memory; (4) Programmable Decode PLD for flexible address mapping of all memories within 8032 space; (5) Analog-to-Digital Converter (ADC) ; (6) Six I/O ports with up to 46 I/O pins; (7) 3000 gate PLD with 16 macrocells; (8) Supervisor functions with Watchdog Timer; (9) In-System Programming (ISP) via JTAG; (10) Zero-Power Technology; (11) Single Supply Voltage: 4/5 to 5.5V, 3.0 to 3.6V.
