Product Summary

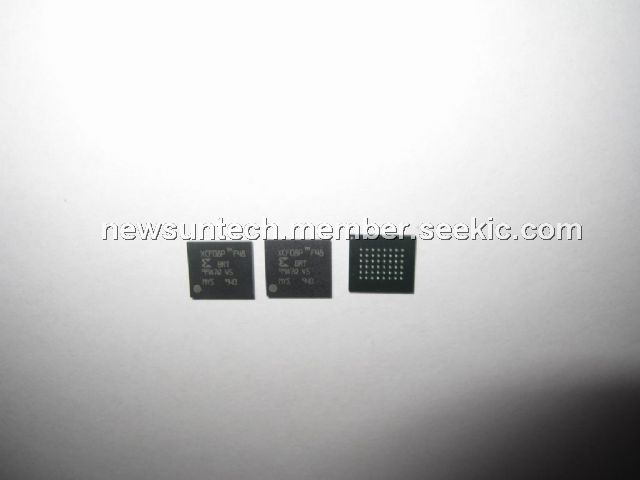

Xilinx introduces the Platform Flash series of in-system programmable configuration PROMs. Available in 1 to 32 Megabit (Mbit) densities, the PROM XCF08PF48C provides an easy-to-use, cost-effective, and reprogrammable method for storing large Xilinx FPGA configuration bitstreams. The XCF08PF48C version includes 1-Mbit PROM that supports Master Serial and Slave Serial FPGA configuration mode. The XCF08PF48C version includes 8-Mbit PROM that support Master Serial, Slave Serial, Master SelectMAP, and Slave SelectMAP FPGA configuration modes.

Parametrics

XCF08PF48C absolute maximum ratings: (1)VCCINT Internal supply voltage relative to GND: –0.5 to +2.7 V; (2)VCCO I/O supply voltage relative to GND: –0.5 to +4.0 V; (3)VCCJ JTAG I/O supply voltage relative to GND: –0.5 to +4.0 V; (4)VIN Input voltage with respect to GND; (5)VCCO < –0.5 to +3.6 V; (6)VCCO ≥ –0.5 to +3.6 V; (7)VTS Voltage applied to High-Z output; (8)VCCO < 2.5V –0.5 to +3.6 V; (9)VCCO ≥ 2.5V –0.5 to +3.6 V; (10)TSTG Storage temperature (ambient) –65 to +150 ℃; (11)TJ Junction temperature +125 +125 ℃.

Features

XCF08PF48C features: (1)In-System Programmable PROMs for Configuration of Xilinx FPGAs; (2)Low-Power Advanced CMOS NOR FLASH Process; (3)Endurance of 20,000 Program/Erase Cycles; (4)Operation over Full Industrial Temperature Range(-40℃ to +85℃); (5)IEEE Standard 1149.1/1532 Boundary-Scan (JTAG) Support for Programming, Prototyping, and Testing; (6)JTAG Command Initiation of Standard FPGA Configuration; (7)Cascadable for Storing Longer or Multiple Bitstreams; (8)Dedicated Boundary-Scan (JTAG) I/O Power Supply (VCCJ); (9)I/O Pins Compatible with Voltage Levels Ranging From 1.5V to 3.3V; (10)Design Support Using the Xilinx Alliance ISE and Foundation ISE Series Software Packages.

Diagrams

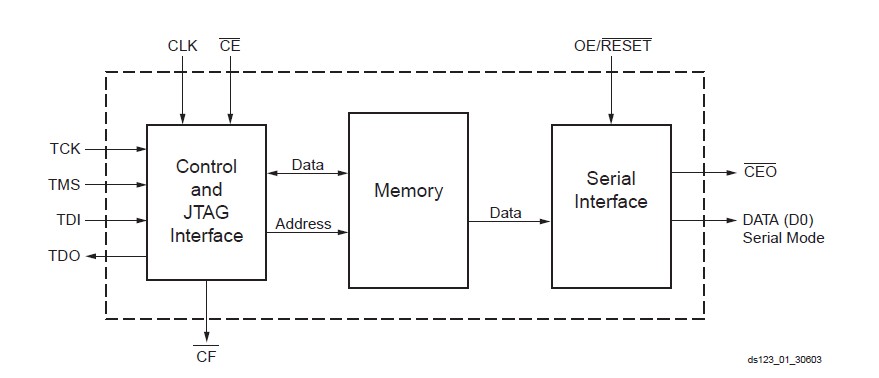

XCF08PF48C Platform Flash PROM Block Diagram
