Product Summary
The bga6589 is a MMIC wideband medium power amplifier. The bga6589 is with internal matching circuit in a 4-pin SOT89 plastic low thermal resistance SMD package. Applications of the bga6589 include: Broadband medium power gain blocks, Small signal high linearity amplifiers, Variable gain and high output power in combination with the BGA2031, Cellular, PCS and CDPD, IF/RF buffer amplifier, Wireless data SONET, Oscillator amplifier, final PA and Drivers for CATV amplifier.
Parametrics
bga6589 absolute maximum ratings: (1) DC device voltage Vs: 6V (RF input AC coupled) ; (2) DC supply current Is: 150mA; (3) total power dissipation Ptot: 800mW (Ts≤70°C) ; (4) storage temperature Tstg: -65 to +150°C; (5) operating junction temperature Tj: 150°C; (6) maximum drive power Pd: 15dBm.
Features
bga6589 features: (1) Broadband 50Ω gain block; (2) 20dBm output power; (3) SOT89 package; (4) Single supply voltage needed.

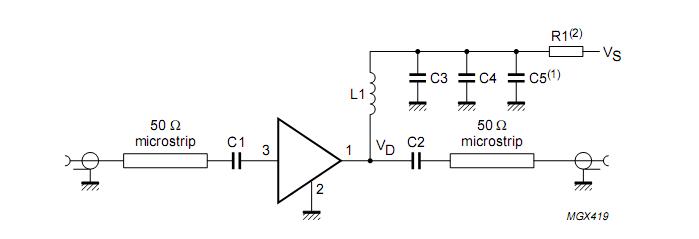

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BGA6589 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
 |
BGA6589,135 |
NXP Semiconductors |
RF Wireless Misc MMIC AMPLIFIER |
Data Sheet |
|
|
||||||||||||
