Product Summary

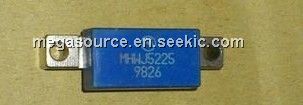

The mhwj5225 is a low distortion wideband amplifier. It is designed specifically for broadband applications requiring low distortion characteristics. The mhwj5225 is also specified for use as return amplifier for mid–split and high–split 2–way cable TV systems. Features all gold metallization system.

Parametrics

mhwj5225 absolute maximum ratings: (1)RF Voltage Input (Single Tone) Vin: +65 dBmV; (2)DC Supply Voltage VCC: +28 Vdc; (3)Operating Case Temperature Range TC: –20 to +100 ℃; (4)Storage Temperature Range Tstg: –40 to +100 ℃.

Features

mhwj5225 features: (1)Guaranteed Broadband Power Gain @ f = 5.0-200 MHz; (2)Guaranteed Broadband Noise Figure @ f = 5.0-175 MHz; (3)Superior Gain, Return Loss and DC Current Stability with Temperature; (4)All Gold Metallization; (5)All Ion-Implanted Arsenic Emitter Transistor Chips with 6.0 GHz fT; (6)Circuit Design Optimized for Good RF Stability Under High VSWR Load Conditions; (7)Transformers Designed to Insure Good Low Frequency Gain Stability versus Temperature.

Diagrams

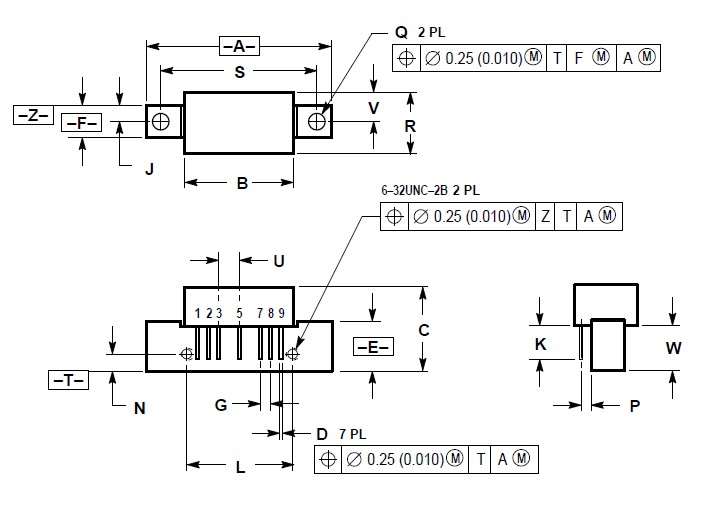

mhwj5225 dimensions
