Product Summary
The PSD813F1A-90JI is a Programmable Microcontroller (MCU). It brings In-System Programmability (ISP) to Flash memory and programmable logic. The result is a simple and flexible solution for embedded designs. The PSD813F1A-90JI combines many of the peripheral functions found in MCU based applications. PSD devices integrate an optimized microcontroller macrocell logic architecture. The Macrocell was created to address the unique requirements of embedded system designs. The PSD813F1A-90JI allows direct connection between the system address/data bus and the internal PSD registers to simplify communication between the MCU and other supporting devices. The PSD813F1A-90JI offers two methods to program PSD Flash memory while the PSD is soldered to a circuit board.
Parametrics
PSD813F1A-90JI absolute maximum ratings: (1)TSTG, Storage Temperature: –65 to 125℃; (2)TLEAD, Lead Temperature during Soldering (20 seconds max.): 235℃ max; (3)VIO, Input and Output Voltage (Q = VOH or Hi-Z): –0.6 to 7.0 V; (4)VCC, Supply Voltage: –0.6 to 7.0 V; (5)VPP, Device Programmer Supply Voltage: –0.6 to 14.0 V; (6)VESD, Electrostatic Discharge Voltage (Human Body model): –2000 to 2000 V.
Features
PSD813F1A-90JI features: (1)1 Mbit of Primary Flash Memory (8 Uniform Sectors); (2)256 Kbit Secondary EEPROM (4 Uniform Sectors); (3)Concurrent operation: read from one memory while erasing and writing the other; (4)16 Kbit SRAM; (5)Over 3,000 Gates Of PLD: DPLD and CPLD; (6)CPLD with 16 Output Macrocells (OMCs) and 24 Input Macrocells (IMCs); (7)100,000 Erase/WRITE Cycles of Flash Memory; (8)10,000 Erase/WRITE Cycles of EEPROM; (9)1,000 Erase/WRITE Cycles of PLD; (10)Data Retention: 15-year minimum at 90℃ (for Main Flash, Boot, PLD and Configuration bits); (11)programmable power management; (12)single supply voltage: 5V±10% for 5V.

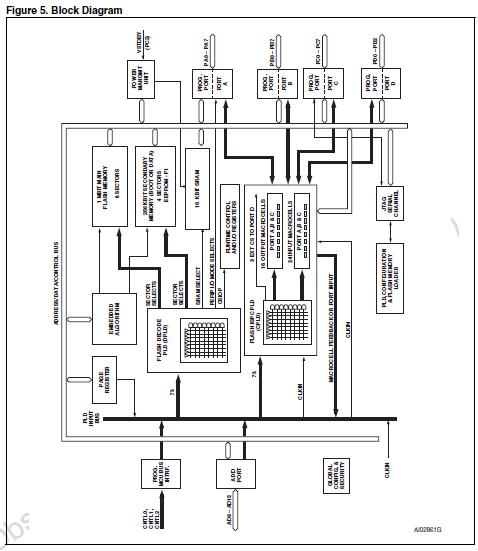

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 PSD813F1A-90JI |
STMicroelectronics |
SPLD - Simple Programmable Logic Devices 5.0V 1M 90ns |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
PSD813F1A-90JI |
STMicroelectronics |
SPLD - Simple Programmable Logic Devices 5.0V 1M 90ns |
Data Sheet |
Negotiable |
|
||||
|
PSD813F2A-90U |
STMicroelectronics |
CPLD - Complex Programmable Logic Devices 5.0V 1M 90ns |
Data Sheet |
Negotiable |
|
||||
|
PSD813F2A-70M |
STMicroelectronics |
SPLD - Simple Programmable Logic Devices 5.0V 1M 70ns |
Data Sheet |
Negotiable |
|
||||
|
PSD854F2-70J |
STMicroelectronics |
CPLD - Complex Programmable Logic Devices 5.0V 2M 70ns |
Data Sheet |
Negotiable |
|
||||
|
PSD834F2-90MI |
STMicroelectronics |
CPLD - Complex Programmable Logic Devices 5.0V 2M 90ns |
Data Sheet |
Negotiable |
|
||||
|
PSD853F2-90JI |
STMicroelectronics |
CPLD - Complex Programmable Logic Devices 5.0V 1M 90ns |
Data Sheet |
Negotiable |
|
||||
