Product Summary

The mrf5175 is an NPN RF power transistor. It is designed for Class A, AB and C Amplifier Applications in the 225 to 400 MHz Band.

Parametrics

mrf5175 absolute maximum ratings: (1)IC: 0.5 A; (2)VCBO: 40 V; (3)PDISS: 8.75 W @ TC = 25 ℃; (4)TJ: -55 ℃ to +200 ℃; (5)TSTG: -55 ℃ to +200 ℃; (6)θJC: 20 ℃/W.

Features

mrf5175 features: (1)High Gain; (2)Gold Metallization; (3)Emitter Ballasting.

Diagrams

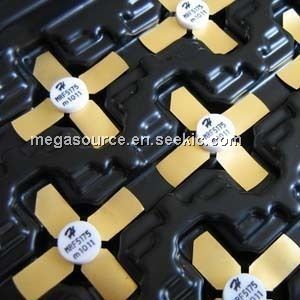

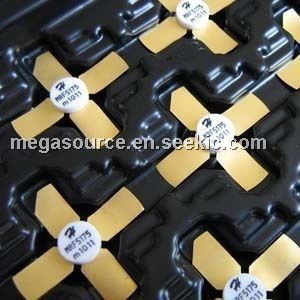

mrf5175 block diagram
