Product Summary

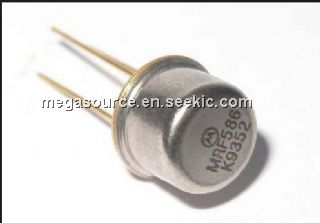

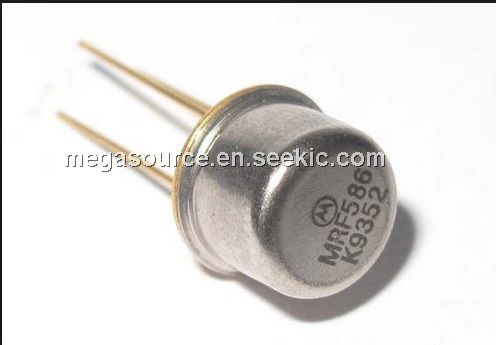

The mrf586 is a Silicon NPN transistor, designed for VHF and UHF equipment. Applications include amplifier; pre-driver, driver, and output stages. Also suitable for oscillator and frequency-multiplier functions.

Parametrics

mrf586 absolute maximum ratings: (1)VCEO Collector-Emitter 20 Vdc; (2)VCBO Collector-Base Voltage 35 Vdc; (3)VEBO Emitter-Base Voltage 3.0 Vdc; (4)IC Collector Current 200 mA.

Features

mrf586 features: (1)Silicon NPN, To-39 packaged VHF/UHF Transistor; (2)Ftau = 3.0 Ghz (typ) @ 300MHz, 14v, 90mA; (3)GU max = 12.5dB (typ) @ 300 MHz, 15v, 40mA; (4)|S21|2 = 12.5dB (typ) @ 300 MHz, 15v, 40mA.

Diagrams

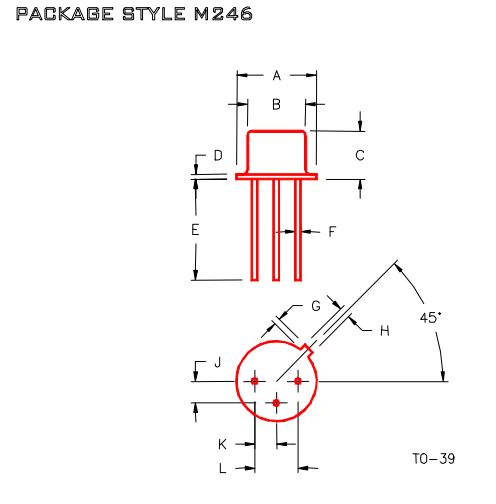

mrf586 block diagram
