Product Summary
The MRF892 is a Designed for Class AB, Cellular Base Station Applications up to 900 MHz.
Parametrics
MRF892 absolute maximum ratings: (1)IC: 2.5 A; (2)VCBO: 50 V; (3)VCEO: 30 V; (4)VEBO: 4.0 V; (5)PDISS: 50 W @ TC = 25 °C; (6)TJ: -65 °C to +200 °C; (7)TSTG: -65 °C to +150 °C; (8)θJC: 3.5 °C/W.
Features
MRF892 features: (1)Internal Input Matching Network; (2)PG =8.5 dB at 14 W/900 MHz; (3)Omnigold Metalization System.

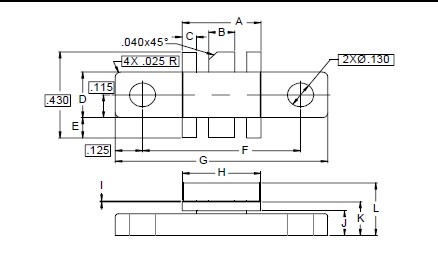

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF892 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
|
MRF837 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
