Product Summary

The LM324DR consists of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply over a wide range of voltages. Operation of the LM324DR from split supplies also is possible if the difference between the two supplies is 3 V to 32 V (3 V to 26 V for the LM2902), and VCC is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain of the LM324DR is independent of the magnitude of the supply voltage. Applications include transducer amplifiers, dc amplification blocks, and all the conventional operational-amplifier circuits that now can be more easily implemented in single-supply-voltage systems.

Parametrics

LM324DR absolute maximum ratings: (1)Supply voltage, VCC: ±13 or 26V; (2)Differential input voltage, VID: ±26; (3)Input voltage, VI: -0.3 to 26; (4)Operating virtual junction temperature, TJ: 150 ℃; (5)Case temperature for 60 seconds FK package: 260 ℃; (6)Lead temperature 1,6 mm (1/16 inch) from case for 60 seconds J or W package: 300 ℃; (7)Storage temperature range, Tstg: -65 to 150℃.

Features

LM324DR features: (1)Wide Supply Ranges; (2)Low Supply-Current Drain Independent of Supply Voltage: 0.8 mA Typ; (3)Low Input Bias and Offset Parameters; (4)Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V; (5)Open-Loop Differential Voltage Amplification: 100 V/mV Typ; (6)Internal Frequency Compensation.

Diagrams

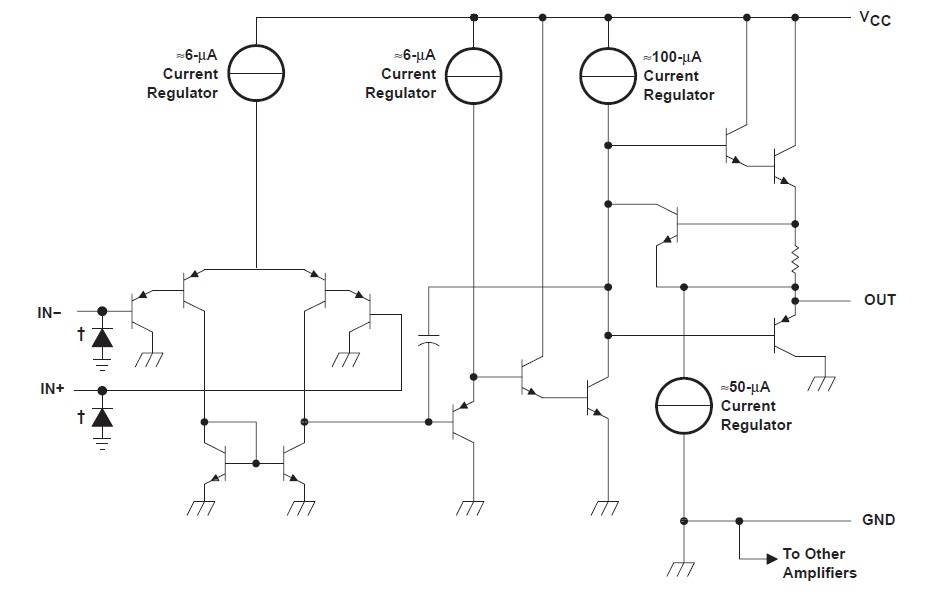

LM324DR schematic

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LM324DR
LM324DR
Texas Instruments
Operational Amplifiers - Op Amps Quad GP Op Amp
Data Sheet
0-1: $0.23
1-25: $0.15
25-100: $0.12
100-250: $0.10
