Product Summary

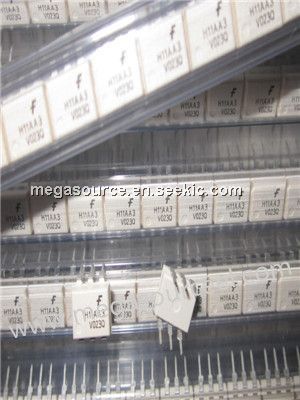

The H11AA3 is an AC input photocoupler. The H11AA3 consists of two infrared emitting diode, connected in inverse parallel, optically coupled to a phototransistor detector. Schematic the H11AA3 is packaged in a 6-pin DIP package and available in wide-lead spacing and SMD option.Applications are (1)AC line monitor; (2)Unknown polarity DC sensor; (3)Telephone line interface.

Parametrics

H11AA3 absolute maximum ratings: (1)Input: Forward current IF: 60 mA; Peak forward current (t = 10μs)IFM: 1 A; Power dissipation (TA = 25°C)PD: 120 mW; Derating factor (above 90°C)PD: 3.8 mW/°C; (2)Output: Power dissipation (TA = 25°C)No derating up to 100°C PC: 150 mW; Collector-emitter voltage VCEO: 80 V; Collector-base voltage VCBO: 80 V; Emitter-collector voltage VECO: 7 V; (3)Total power dissipation Ptot: 200 mW; (4)Isolation voltage Viso: 5000 Vrms; (5)Operating temperature Topr: -55~+100 °C; (6)Storage temperature Tstg: -55~+125 °C; (7)Soldering temperature Tsol: 260 °C.

Features

H11AA3 features: (1)H11AAX series: H11AA1, H11AA2, H11AA3, H11AA4; (2)High isolation voltage between input and output Viso = 5000 Vrms; (3)Creepage distance >7.62 mm; (4)Compact dual-in-line package; (5)Pb free and RoHS compliant.; (6)UL approved (No. E214129); (7)VDE approved (No.132249); (8)SEMKO approved; (9)NEMKO approved; (10)DEMKO approved; (11)FIMKO approved; (12)CSA approved.

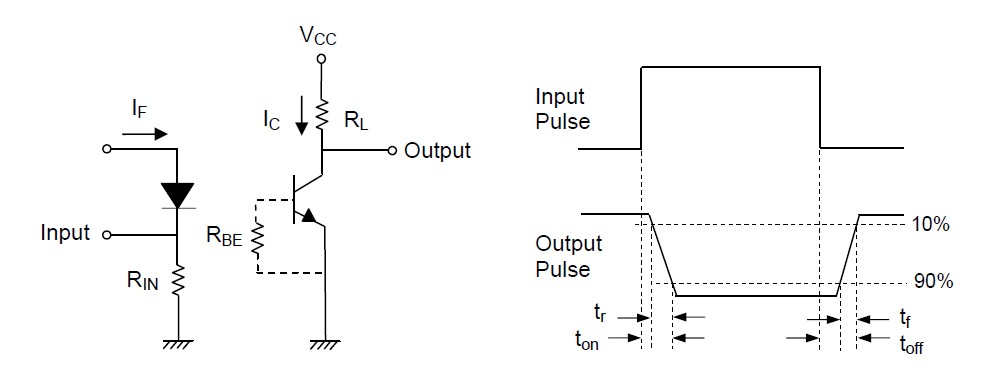

Diagrams

H11AA3 pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
H11AA3_Q
H11AA3_Q

Fairchild Semiconductor

Transistor Output Optocouplers DIP-6 PHOTO TRANS

Data Sheet

Negotiable
H11AA33S
H11AA33S

Fairchild Semiconductor

Transistor Output Optocouplers Optocoupler SM-DIP6 Phototransistor

Data Sheet

Negotiable
H11AA3M
H11AA3M

Everlight

Transistor Output Optocouplers Optocouplers

Data Sheet

0-1: $0.34
1-50: $0.28
50-100: $0.25
100-500: $0.18
H11AA3S
H11AA3S

Fairchild Semiconductor

Transistor Output Optocouplers Optocoupler SM-DIP6 Phototransistor

Data Sheet

Negotiable
H11AA3S(TA)
H11AA3S(TA)

Everlight

Transistor Output Optocouplers Optocouplers

Data Sheet

0-1: $0.34
1-50: $0.28
50-100: $0.25
100-500: $0.18
500-1000: $0.16
H11AA3S(TA)-V
H11AA3S(TA)-V

Everlight

Transistor Output Optocouplers Optocouplers

Data Sheet

0-1: $0.34
1-50: $0.28
50-100: $0.25
100-500: $0.18
500-1000: $0.16
H11AA3S(TB)
H11AA3S(TB)

Everlight

Transistor Output Optocouplers Optocouplers

Data Sheet

0-1: $0.34
1-50: $0.28
50-100: $0.25
100-500: $0.18
500-1000: $0.16
H11AA3S(TB)-V
H11AA3S(TB)-V

Everlight

Transistor Output Optocouplers Optocouplers

Data Sheet

0-1: $0.34
1-50: $0.28
50-100: $0.25
100-500: $0.18
500-1000: $0.16
