Product Summary

The 11-21SYGC/S530-E2 1206 Package Chip LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. The applications of the 11-21SYGC/S530-E2 are Backlighting in dashboard and switch, indicator and backlighting in telephone and fax, Flat backlight for LCD, switch and symbol, General use.

Parametrics

11-21SYGC/S530-E2 absolute maximum ratings: (1)Reverse Voltage VR: 5 V; (2)Forward Current IF: 25mA; (3)Operating Temperature Topr: -40 ~ +85 ℃; (4)Storage Temperature Tstg: -40~ +90 ℃; (5)Electrostatic Discharge(HBM)ESD: 2000 V; (6)Power Dissipation Pd: 60 mW; (7)Peak Forward Current (Duty 1/10 @1KHz)IF: 60 mA.

Features

11-21SYGC/S530-E2 features: (1)Package in 8mm tape on 7〞diameter reel; (2)Compatible with automatic placement equipment; (3)Compatible with infrared and vapor phase reflow solder process; (4)Mono-color type; (5)Pb-free; (6)The product itself will remain within RoHS compliant version.

Diagrams

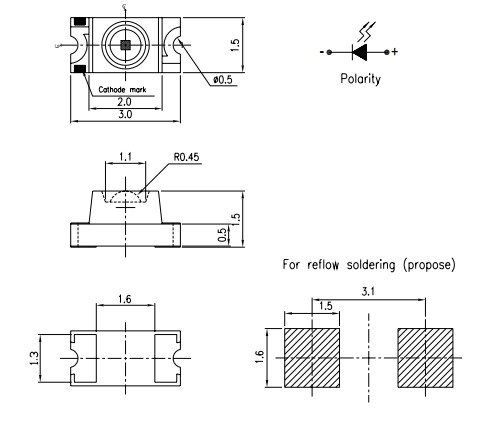

11-21SYGC/S530-E2 package dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
11-21SYGC/S530-E2/TR8
11-21SYGC/S530-E2/TR8
Everlight
Standard LED - SMD SMD LED
Data Sheet
0-1: $0.11
1-50: $0.10
50-100: $0.07
100-500: $0.05
