Product Summary
The 12-215SURC 1206 Package Chip LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. The applications of the 12-215SURC are Backlighting in dashboard and switch, indicator and backlighting in telephone and fax, Flat backlight for LCD, switch and symbol, General use.
Parametrics
12-215SURC absolute maximum ratings: (1)Reverse Voltage VR: 5 V; (2)Forward Current IF: 25mA; (3)Operating Temperature Topr: -40 ~ +85 ℃; (4)Storage Temperature Tstg: -40~ +90 ℃; (5)Electrostatic Discharge(HBM)ESD: 2000 V; (6)Power Dissipation Pd: 60 mW; (7)Peak Forward Current (Duty 1/10 @1KHz)IF: 60 mA.
Features
12-215SURC features: (1)Package in 8mm tape on 7〞diameter reel; (2)Compatible with automatic placement equipment; (3)Compatible with infrared and vapor phase reflow solder process; (4)Mono-color type; (5)Pb-free; (6)The product itself will remain within RoHS compliant version.

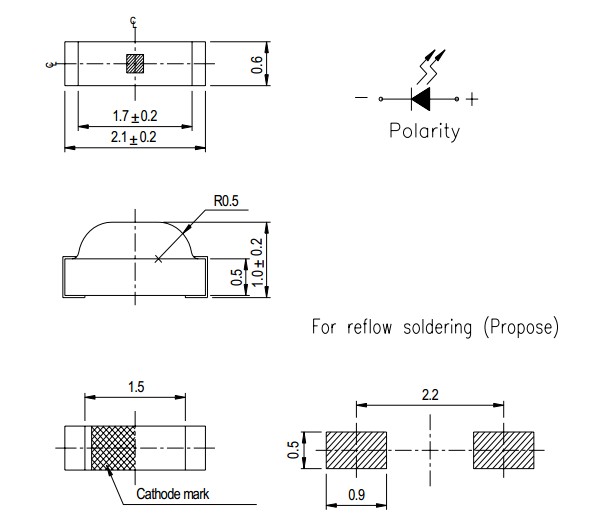

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 12-215SURC/S530-A3/TR8 |
Everlight |
Standard LED - SMD SMD LED |
Data Sheet |
|
|
||||||||||||
|
12-215SURC/S530-XX/TR8 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
12-215SURC-S530-A3-TR8 |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
