Product Summary

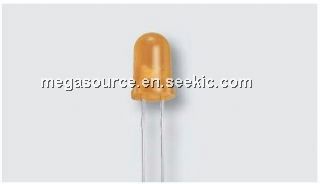

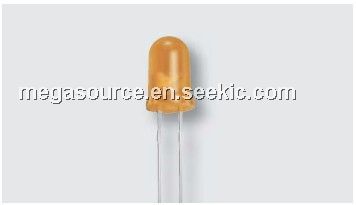

The 333-2SYGDS530 5mm 1Pcs Circuit Board Indicator is used as indicators of indicating the Degree, Functions, Positions etc, in electronic instruments.

Parametrics

333-2SYGDS530 absolute maximum ratings: (1)Reverse Voltage VR: 5 V; (2)Forward Current IF: 25mA; (3)Operating Temperature Topr: -40 ~ +85 ℃; (4)Storage Temperature Tstg: -40~ +90 ℃; (5)Electrostatic Discharge(HBM)ESD: 2000 V; (6)Power Dissipation Pd: 60 mW; (7)Peak Forward Current (Duty 1/10 @1KHz)IF: 60 mA.

Features

333-2SYGDS530 features: (1)Low power consumption; (2)High efficiency and low cost; (3)Good control and free combinations on the colors of LED lamps; (4)Good lock and easy to assembly; (5)Stackable and easy to assembly Stackable vertically and easy to assembly; (6)Versatile mounting on P.C board or panel; (7)Stackable horizontally and easy to assembly; (8)Pb free; (9)The product itself will remain within RoHS compliant version.

Diagrams

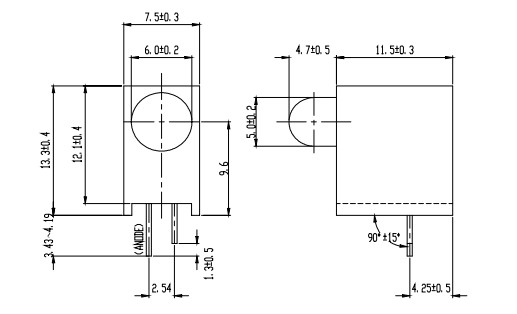

333-2SYGDS530 package dimensions
