Product Summary
The 336SURSYGW/A2 LED Lamp is specially designed for applications requiring higher brightness. The led lamp is available with different colors, intensities. the applications of the 204-10subc/c470 are tv set, monitor, telephone, computer.
Parametrics
336SURSYGW/A2 absolute maximum ratings: (1)Reverse Voltage VR: 5 V; (2)Forward Current IF: 25mA; (3)Operating Temperature Topr: -40 ~ +85 ℃; (4)Storage Temperature Tstg: -40~ +90 ℃; (5)Electrostatic Discharge(HBM)ESD: 2000 V; (6)Power Dissipation Pd: 60 mW; (7)Peak Forward Current (Duty 1/10 @1KHz)IF: 160 mA.
Features
336SURSYGW/A2 features: (1)two chips are matched for uniform light output, wide viewing angle; (2)long life-soild state reliability; (3)I.C. compatible/low power consumpting.

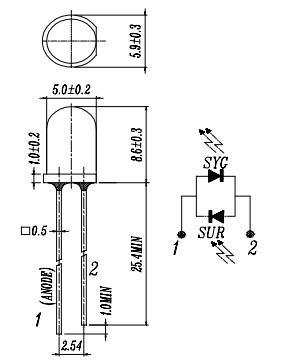

Diagrams
