Product Summary
The ITR9909 is a 5V Opto Interrupter. It consists of an infrared emitting diode and an NPN silicon phototransistor, encased side-by-side on converging optical axis in a black thermoplastic housing. The phototransistor receives radiation from the IRED only. This is the normal situation. But when an object is in between, phototransistor could not receives the radiation. The applications of the ITR9909 are Mouse Copier, Switch Scanner, Floppy disk driver, Non-contact Switching, Direct Board.
Parametrics
ITR9909 absolute maximum ratings: (1)Power Dissipation: 160 mW; (2)Reverse Voltage: 5 V; (3)Forward Current IF Input: 60 mA; (4)Peak Forward Current(*1): 1 A; (5)Collect Power Dissipation: 100 mW; (6)Collect Current: 20 mA; (7)Output Collector-Emitter Voltage: 30 V; (8)Emitter-Collector Voltage: 5 V; (9)Operating Temperature: -25~+85 ℃; (10)Storage Temperature: -40~+85 ℃; (11)Soldering Temperature(*2): 260 ℃.
Features
ITR9909 features: (1)Fast response time; (2)High analytic; (3)Peak wavelength λp=940nm; (4)High sensitivity; (5)Pb free; (6)This product itself will remain within RoHS compliant version.

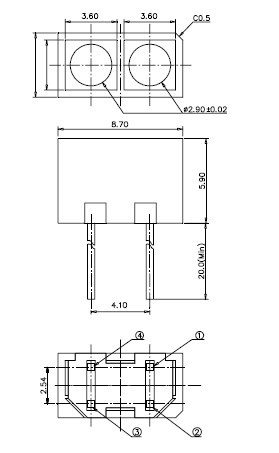

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ITR9909 |
|
OPTO INTERRUPTER |
Data Sheet |
|
|
||||||||||||
