Product Summary

The T1D-APQHY/2T Reverse Package Chip LED is much smaller than lead frame type components, thus enable smaller board size, higher packing density, reduced storage space and finally smaller equipment to be obtained. The applications of the T1D-APQHY/2T are Backlighting in dashboard and switch, indicator and backlighting in telephone and fax, Flat backlight for LCD, switch and symbol, General use.

Parametrics

T1D-APQHY/2T absolute maximum ratings: (1)Reverse Voltage VR: 5 V; (2)Forward Current IF: 25mA; (3)Operating Temperature Topr: -40 ~ +85 ℃; (4)Storage Temperature Tstg: -40~ +90 ℃; (5)Electrostatic Discharge(HBM)ESD: 150 V; (6)Power Dissipation Pd: 95 mW; (7)Peak Forward Current (Duty 1/10 @1KHz)IF: 100 mA.

Features

T1D-APQHY/2T features: (1)Package in 8mm tape on 7〞diameter reel; (2)Compatible with automatic placement equipment; (3)Compatible with infrared and vapor phase reflow solder process; (4)Mono-color type; (5)Pb-free; (6)The product itself will remain within RoHS compliant version.

Diagrams

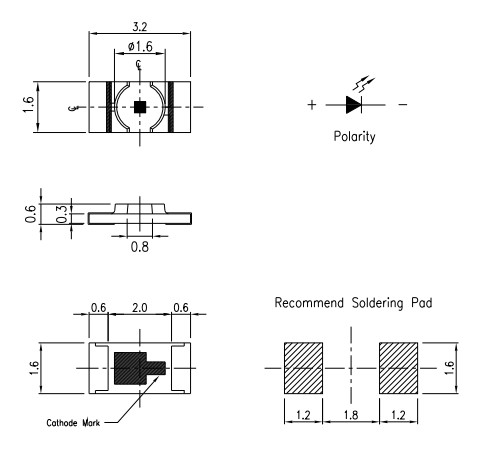

T1D-APQHY/2T package dimensions
