Product Summary

The CX380D5R is a PCB mount.

Parametrics

CX380D5R absolute maximum ratings: (1)Nominal voltage: 5 VDC; (2)Control voltage range: 4 to 15 VDC; (3)Minimum turn-on voltage: 4.0 VDC; (4)Drop out voltage: 1.0 VDC; (5)Typical input current: 15 mAdc; (6)Nominal input impedance: 240 Ohm; (7)Maximum turn-on time [msec] (3): 1/2 Cycle; (8)Maximum turn-off time [msec]: 1/2 Cycle.

Features

CX380D5R features: (1)SIP SSR; (2)Ratings of 5A @ 660 VAC; (3)SCR output for heavy industrial loads; (4)AC or DC control; (5)Zero-crossing (resistive loads)or random-fire (inductive loads)output.

Diagrams

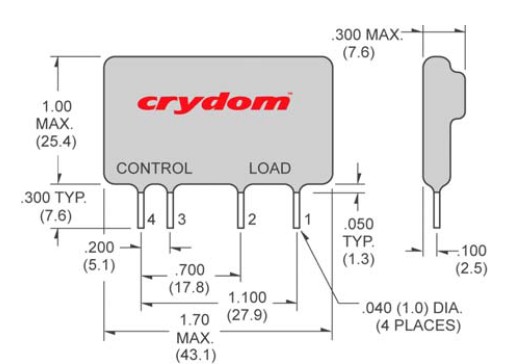

CX380D5R pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CX380D5R
CX380D5R

Crydom

Solid State Relays PCB SIP SSR 530Vac /5A, 3-15Vdc,RN

Data Sheet

0-27: $9.88
27-50: $9.32
50-100: $9.07
100-250: $8.83
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
CX380D5
CX380D5

Crydom

Solid State Relays PCB SIP SSR 530Vac 5A, 3-15Vdc,ZC

Data Sheet

0-1: $10.54
1-10: $10.04
10-25: $9.81
25-50: $9.58
CX380D5R
CX380D5R

Crydom

Solid State Relays PCB SIP SSR 530Vac /5A, 3-15Vdc,RN

Data Sheet

0-27: $9.88
27-50: $9.32
50-100: $9.07
100-250: $8.83
