Product Summary

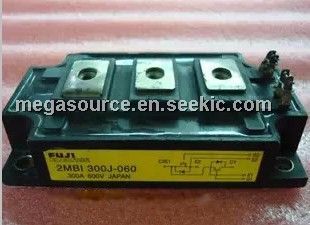

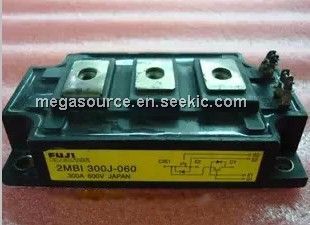

The 2MBI300J-060 is an IGBT power module. Applications are (1)High power switching; (2)A.C. motor controls; (3)D.C. motor controls; (4)Uninterruptible power supply.
Parametrics
2MBI300J-060 absolute maximum ratings: (1)Collector-emitter voltage, VCES: 600V; (2)Gate-emitter voltage, VGES: ±20V; (3)Collector current, continuous, IC: 300A; 1ms, IC pulse: 600A; -IC: 300A; 1ms, -IC pulse: 600A; (4)Max power dissipation, PC: 900W; (5)Operating temprature, Tj: +150℃; (6)Storage temperature, Tstg: -40 to +125℃; (7)Isolation voltage, 1min, Vis: AC 2500(1 min) V; (8)Screw torque, mounting: 3.5Nm; terminals: 4.5Nm.
Features
2MBI300J-060 features: (1)Square RBSOA; (2)Low saturation voltage; (3)Less total power dissipation; (4)Improved FWD characteristic; (5)Minimized internal stray inductance; (6)Overcurrent limiting function.
