Product Summary

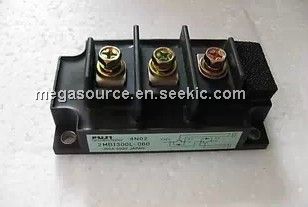

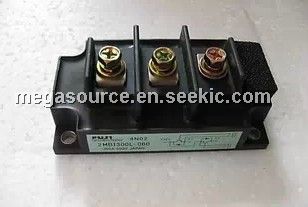

The 2MBI300L-060 is an IGBT module. The applications of the 2MBI300L-060 include inverter for motor drive, AC and DC servo drive amplifier, uninerruptible power supply, industrial machines, such as welding machines.

Parametrics

2MBI300L-060 absolute maximum ratings: (1)Collector-emitter voltage: 600 V; (2)Gate-emitter voltage: 20 V; (3)Collector current: 300 A; (4)Max. power dissipation: 1200 W; (5)Operating temperature: +150℃; (6)Storage temperature: -40 to +125℃.

Features

2MBI300L-060 features: (1)High speed switching; (2)Low saturation voltage; (3)Voltage drive.

Diagrams

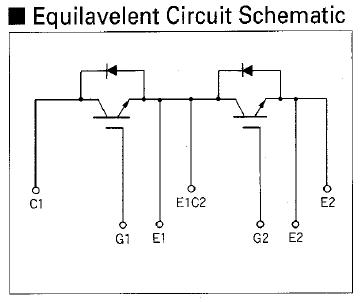

2MBI300L-060 pin connection
