Product Summary

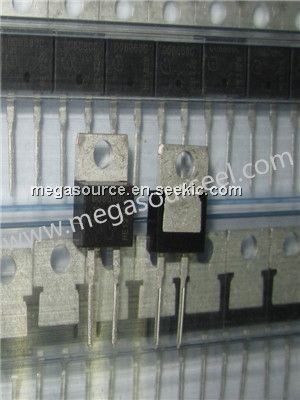

The IDH08SG60C is a SiC Schottky Diode.

Parametrics

IDH08SG60C absolute maximum ratings: (1)Continuous forward current: 8 A; (2)Non-repetitive peak forward current: 350A; (3)Repetitive peak reverse voltage: 600 V; (4)Diode dv/dt ruggedness dv/dt: 50 V/ns; (5)Power dissipation Ptot: 100 W; (6)Operating and storage temperature: -55 to 175 °C.

Features

IDH08SG60C features: (1)Revolutionary semiconductor material - Silicon Carbide; (2)Switching behavior benchmark; (3)No reverse recovery / No forward recovery; (4)Temperature independent switching behavior; (5)High surge current capability; (6)Pb-free lead plating; RoHS compliant; (7)Qualified according to JEDEC for target applications.

Diagrams

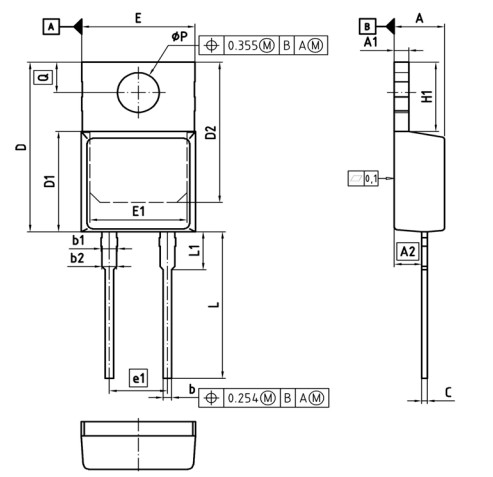

IDH08SG60C plackage dimensions

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
IDH08SG60C
IDH08SG60C

Infineon Technologies

Schottky (Diodes & Rectifiers) SIC DIODEN

Data Sheet

0-245: $2.59
245-250: $2.34
250-500: $2.10
500-1000: $1.77
