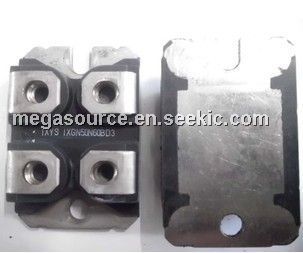

Product Summary
The IXGN50N60BD3 is an IGBT. Applications are (1)AC motor speed control; (2)DC servo and robot drives; (3)DC choppers; (4)Buck converters.
Parametrics
IXGN50N60BD3 absolute maximum ratings: (1)VCES TJ = 25°C to 150°C: 600 V; (2)VCGR TJ = 25°C to 150°C; RGE = 1 MΩ: 600 V; (3)VGES Continuous: 20 V; (4)VGEM Transient: 30 V; (5)IC25 TC = 25°C: 75 A; (6)IC90 TC = 90°C: 50 A; (7)ICM TC = 25°C, 1 ms: 200 A; (8)SSOA VGE= 15 V, TVJ = 125°C, RG = 10Ω ICM = 100 A; (9)PC TC = 25°C: 250 W; (10)VRRM: 600 V; (11)IFAVM TC = 70°C; rectangular, d = 50%: 60 A; (12)IFRM tP z<10 ms; pulse width limited by TJ: 600 A; (13)PD TC = 25°C: 150 W; (14)TJ: -40 to +150°C; (15)TJM: 150°C; (16)Tstg -40 to +150°C.
Features
IXGN50N60BD3 features: (1)International standard package miniBLOC; (2)Aluminium nitride isolation - high power dissipation; (3)Isolation voltage 3000 V~; (4)Very high current, fast switching IGBT & FRED diode; (5)MOS Gate turn-on - drive simplicity; (6)Low collector-to-case capacitance; (7)Low package inductance (< 10 nH)- easy to drive and to protect; (8)Molding epoxies meet UL94V-0 flammability classification.

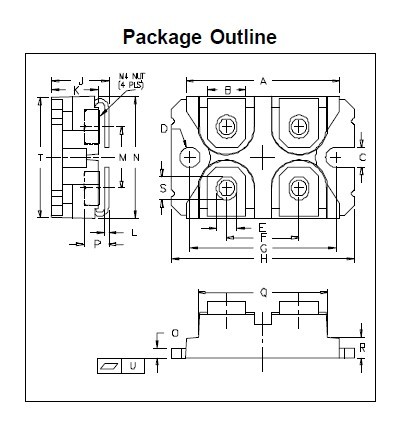

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IXGN50N60BD3 |
Ixys |
IGBT Transistors 75 Amps 600V 2.5 V Rds |
Data Sheet |
Negotiable |
|
||||
