Product Summary

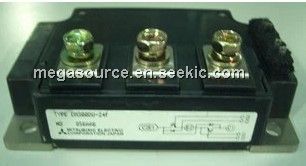

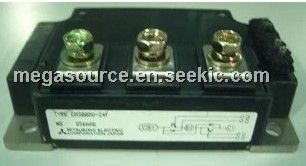

The cm200du-24f is an IGBT module. The applications of the cm200du-24f include General purpose inverters & Servo controls, etc.

Parametrics

cm200du-24f absolute maximum ratings: (1)Collector-emitter voltage: 1200 V at G-E Short; (2)Gate-emitter voltage: ±20 V at G-E Short; (3)Collector current: 200 A at TC = 25℃, 400 A at Pulse; (4)Emitter current: 200 A at TC = 25℃, 400 A at Pulse; (5)Maximum collector dissipation: 830 W at TC = 25℃; (6)Junction temperature: -40 to +150 ℃; (7)Storage temperature: -40 to +125 ℃; (8)Isolation voltage: 2500 Vrms at Terminals to base plate, f = 60Hz, AC 1 minute.

Features

cm200du-24f features: (1)IC: 200A; (2)VCES: 1200V; (3)Insulated Type; (4)2-elements in a pack.

Diagrams

cm200du-24f block diagram
