Product Summary

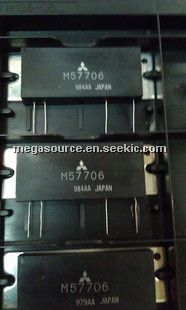

The m57706 is an 8W FM mobile radio.

Parametrics

m57706 absolute maximum ratings: (1)supply voltage: 17: V; (2)total current: 5A; (3)input power: 0.4W; (4)output power: 12W; (5)operating case temperature: -30 to 110°C; (6)storage temperature: -40 to 110°C.

Features

m57706 features: (1)frequency range: 135 to 145MHz; (2)output power: 8W; (3)total efficiency: 35%; (4)2nd. harmonic: -25dbc; (5)3rd. harmonic: -30dbc; (6)input VSWR: 4.

Diagrams

m57706 block diagram
