Product Summary

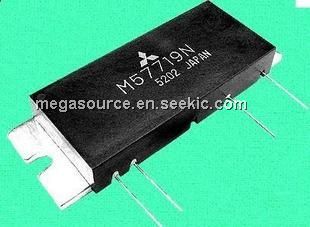

The m57719n is a 14W FM mobile radio.

Parametrics

m57719n absolute maximum ratings: (1)supply voltage: 17V; (2)total current: 6A; (3)input power: 0.4W; (4)output power: 20W; (5)operating case temperature: -30 to 110°C; (6)storage temperature: -40 to 110°C.

Features

m57719n features: (1)frequency range: 142 to 163MHz; (2)output power: 14W; (3)total efficiency: 40%; (4)2nd. harmonic: -25dbc; (5)3rd. harmonic: -35dbc; (6)input VSWR: 4.

Diagrams

m57719n block diagram
