Product Summary

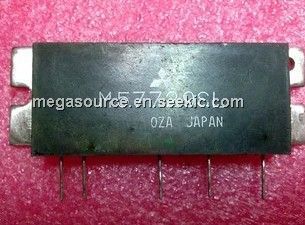

The m57729sl is a 30W FM mobile radio.

Parametrics

m57729sl absolute maximum ratings: (1)supply voltage: 17 V; (2)total current: 10A; (3)input power: 0.4W; (4)output power: 40W; (5)operating case temperature: -30 to 110°C; (6)storage temperature: -40 to 110°C.

Features

m57729sl features: (1)frequency range: 360 to 380MHz; (2)output power: 30W; (3)total efficiency: 40%; (4)2nd. harmonic: -30dbc; (5)3rd. harmonic: -30dbc; (6)input VSWR: 2.8.

Diagrams

m57729sl block diagram
