Product Summary

The m67712 is a 30W SSB mobile radio.

Parametrics

m67712 absolute maximum ratings: (1)supply voltage: 17V; (2)total current: 7A; (3)input power: 600mW; (4)output power: 40W; (5)operating case temperature: -30 to 110°C; (6)storage temperature: -40 to 110°C.

Features

m67712 features: (1)frequency range: 220 to 225MHz; (2)output power: 30W; (3)total efficiency: 43%; (4)2nd. harmonic: -30dbc; (5)3rd. harmonic: -35dbc; (6)input VSWR: 2.8.

Diagrams

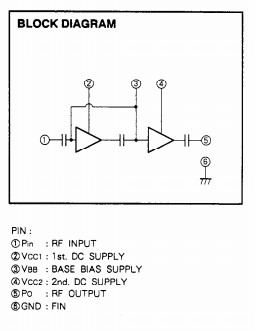

m67712 block diagram
