Product Summary

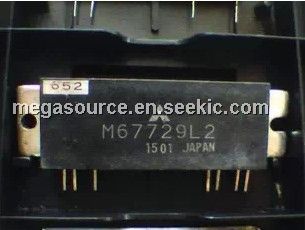

The m67729l2 is a 400 to 420MHz FM portable radio.

Parametrics

m67729l2 absolute maximum ratings: (1)supply voltage: 16V; (2)total current: 6A; (3)input power: 0.3W; (4)output power: 30W; (5)operating case temperature: -30 to 110°C; (6)storage temperature: -40 to 110°C.

Features

m67729l2 features: (1)frequency range: 400 to 420MHz; (2)output power: 20W; (3)total efficiency: 35%; (4)2nd. harmonic: -30dbc; (5)3rd. harmonic: -30dbc; (6)input VSWR: 2.8.

Diagrams

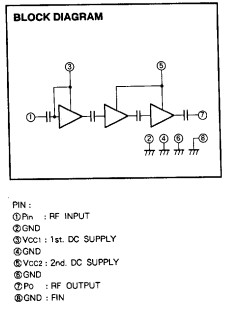

m67729l2 block diagram
