Product Summary

The m67766 is an 806-825MHz, 12.5V, 16W, digital mobile radio.

Parametrics

m67766 absolute maximum ratings: (1)VCC2 Supply voltage: 17V; (2)ICC Total current: 3 A; (3)Pin (max)Input power: 10 mW; (4)TC (OP)Operation case temperature: -30 to 110°C; (5)Tstg Strage temperature: -40 to 110°C.

Features

m67766 features: (1)frequency range: 806 to 825MHz; (2)output power: 16W; (3)total efficiency: 20%; (4)2nd. harmonic: -30dbc; (5)3rd. harmonic: -24dbc.

Diagrams

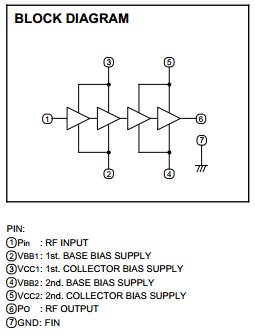

m67766 block diagram
