Product Summary

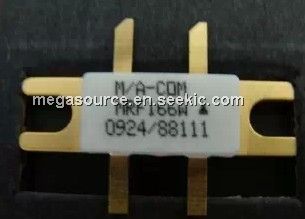

The MRF166W is an RF Power Transistor. The mrf166w is designed primarily for wideband large–signal output and driver stages to 30 – 500 MHz.
Parametrics
MRF166W absolute maximum ratings: (1)Drain–Gate Voltage: VDSS: 65 Vdc; (2)Drain–Gate Voltage (RGS = 1.0 MΩ): VDGR: 65 Vdc; (3)Gate–Source Voltage: VGS: ±20 Adc; (4)Drain Current — Continuous: ID: 8.0 Adc; (5)Total Device Dissipation: @ TC = 25°C:175W, Derate Above 25°C: 1.0W/°C; (6)Storage Temperature Range: Tstg:–65 to 150 °C; (7)Operating Junction Temperature: TJ: 200 °C.
Features
MRF166W features: (1)Push–Pull Configuration Reduces Even Numbered Harmonics; (2)Guaranteed Performance at 500 MHz, 28 Vdc: Output Power = 40 Watts, Gain = 14 dB, Efficiency = 50%; (3)Typical Performance at 175 MHz, 28 Vdc: Output Power = 40 Watts, Gain = 17 dB, Efficiency = 60%; (4)Excellent Thermal Stability, Ideally Suited for Class A Operation; (5)Facilitates Manual Gain Control, ALC and Modulation Techniques; (6)100% Tested for Load Mismatch at All Phase Angles with 30:1 VSWR; (7)Low Crss — 4.0 pF @ VDS = 28 Volts.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MRF166W |
Other |
|
Data Sheet |
Negotiable |
|
||||
