Product Summary

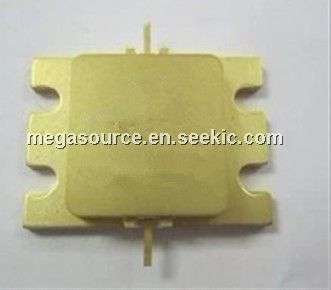

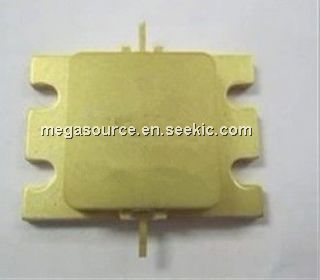

The tim1314-30l is a microwave power GaAs FET.
Parametrics
tim1314-30l absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 20A; (4)Total Power Dissipation (Tc= 25 °C)PT: 136W; (5)Channel Temperature Tch: 175°C; (6)Storage Temperature Tstg: -65 to +175°C.
Features
tim1314-30l features: (1)high power: P1dB=45.0dBm at 13.75GHz to 14.5GHz; (2)broad band internally matched; (3)high gain: G1dB=5.0dB at 13.75GHz to 14.5GHz; (4)hermetically sealed package.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIM1314-30L |
Other |
|
Data Sheet |
Negotiable |
|
||||
