Product Summary
The tim3742-18da is a microwave power GaAs FET.
Parametrics
tim3742-18da absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 10A; (4)Total Power Dissipation (Tc= 25 °C)PT: 62.5W; (5)Channel Temperature Tch: 175°C; (6)Storage Tstg: -65 to +175°C.
Features
tim3742-18da features: (1)high power: P1dB=41.5dBm at 3.7GHz to 4.2GHz; (2)broad band internally matched fet; (3)high gain: G1dB=11.5dB at 4.4GHz to 5.0GHz; (4)hermetically sealed package.

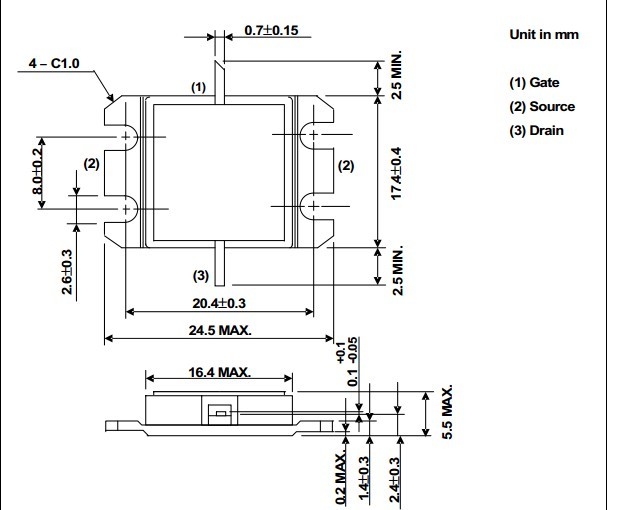

Diagrams
