Product Summary
The tim5053-35sl is a microwave power GaAs FET.
Parametrics
tim5053-35sl absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 20.0A; (4)Total Power Dissipation (Tc= 25 °C)PT: 115.4W; (5)Channel Temperature Tch: 175°C; (6)Storage Tstg: -65 to +175°C.
Features
tim5053-35sl features: (1)Low intermodulation distortion- IM3= -45 dBc at Po = 35dBm, Single carrier level; (2)High power- P1dB = 45.5 dBm at 5.0ghz to 5.3ghz; (3)High gain- G1dB = 9.0dB at 5.0ghz to 5.3ghz; (4)Broad band internally matched; (5)Hermetically sealed package.

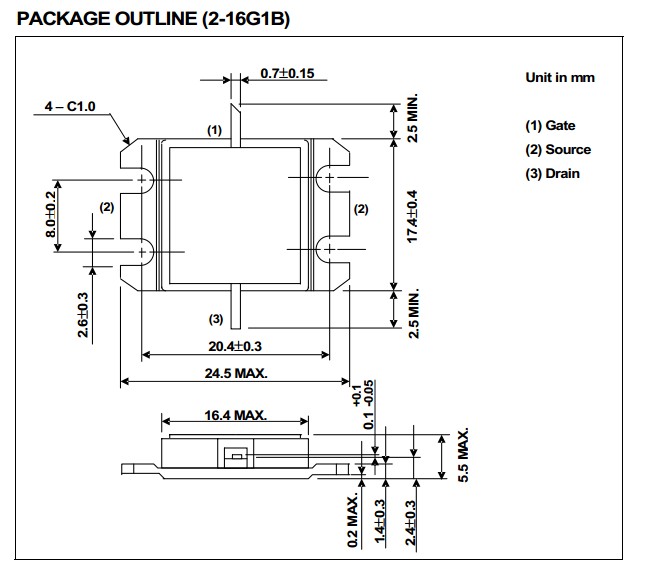

Diagrams
