Product Summary
The tim5359-8sl is a microwave power GaAs FET.
Parametrics
tim5359-8sl absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 7.0A; (4)Total Power Dissipation (Tc= 25 °C)PT: 37.5W; (5)Channel Temperature Tch: 175°C; (6)Storage Tstg: -65 to +175°C.
Features
tim5359-8sl features: (1)high power: p1db=39.5dbm at 5.3ghz to 5.9ghz; (2)broad band internally matched; (3)high gain: g1db=9.0db at 5.3ghz to 5.9ghz; (4)hermetically sealed package.

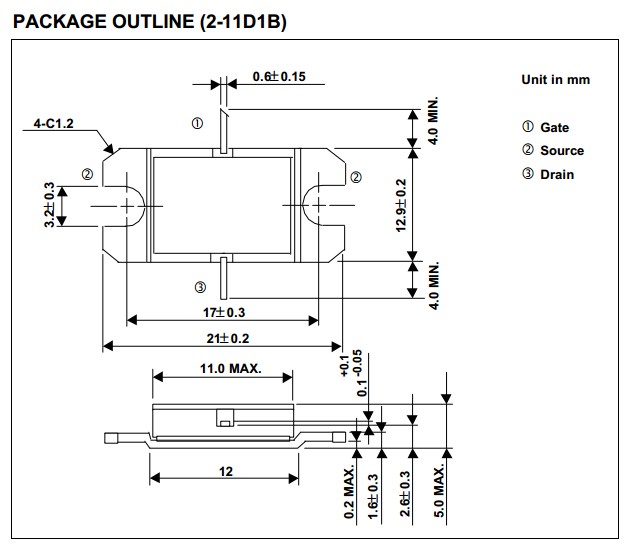

Diagrams
