Product Summary
The tim5964-4sl is a microwave power GAAS FET.
Parametrics
tim5964-4sl absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 4A; (4)Total Power Dissipation (Tc= 25 °C)PT: 20W; (5)Channel Temperature Tch: 175°C; (6)Storage Temperature Tstg: -65 to +175°C.
Features
tim5964-4sl features: (1)high power: p1db=36.5dbm at 5.9ghz to 6.4ghz; (2)broad band internally matched; (3)high gain: g1db=8.5db at 5.9ghz to 6.4ghz; (4)hermetically sealed package.

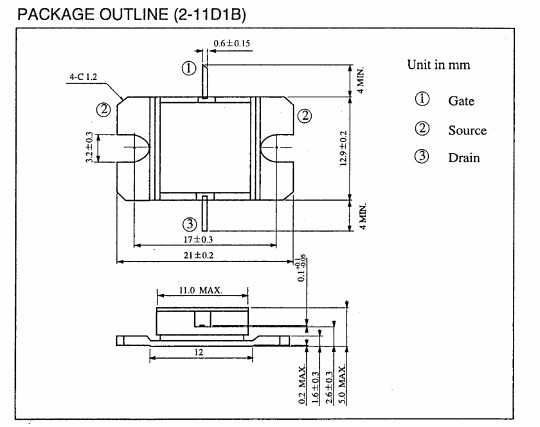

Diagrams
