Product Summary
The tim5964-4ul is a microwave power GAAS FET.
Parametrics
tim5964-4ul absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 3.5A; (4)Total Power Dissipation (Tc= 25 °C)PT: 23W; (5)Channel Temperature Tch: 175°C; (6)Storage Temperature Tstg: -65 to +175°C.
Features
tim5964-4ul features: (1)high power: p1db=36.5dbm at 5.9ghz to 6.4ghz; (2)broad band internally matched; (3)high gain: g1db=10.0db at 5.9ghz to 6.4ghz; (4)hermetically sealed package.

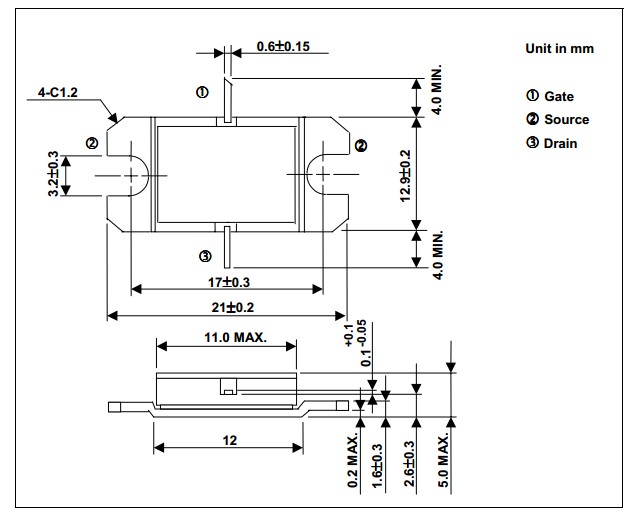

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TIM5964-4UL |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
TIM5053-16SL |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TIM5964-16UL |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TIM5964-25UL |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TIM5964-30SL |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TIM5964-35SLA |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
TIM5964-35SLA-251 |
Other |
|
Data Sheet |
Negotiable |
|
||||
