Product Summary
The tim7179-4f is a microwave power GAAS FET.
Parametrics
tim7179-4f absolute maximum ratings: (1)Drain-Source Voltage VDS: 15V; (2)Gate-Source Voltage VGS: -5V; (3)Drain Current IDS: 3.5A; (4)Total Power Dissipation (Tc= 25 °C)PT: 25W; (5)Channel Temperature Tch: 175°C; (6)Storage Temperature Tstg: -65 to +175°C.
Features
tim7179-4f features: (1)high power: p1db=36.5dbm at 7.1ghz to 7.9ghz; (2)broad band internally matched; (3)high gain: g1db=9.0db at 7.1ghz to 7.9ghz; (4)hermetically sealed package.

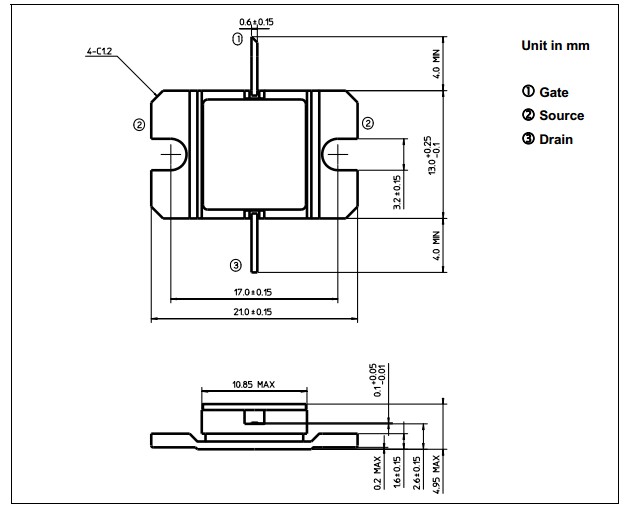

Diagrams
