Product Summary

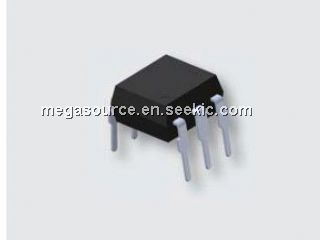

The H11L1 is a 6-Pin DIP Optoisolator Logic Output, which has a gallium arsenide IRED optically coupled to a high–speed integrated detector with Schmitt trigger output. Designed for applications requiring electrical isolation, fast response time, noise immunity and digital logic compatibility. The applications of the H11L1 include Interfacing Computer Terminals to Peripheral Equipment, Digital Control of Power Supplies, Line Receiver, Digital Control of Motors and Other Servo Machine Applications, Logic to Logic Isolator, Logic Level Shifter.
Parametrics
H11L1 absolute maximum rating: (1)Reverse Voltage about input LED, VR: 6 Volts; (2)Forward Current about input LED,Continuous, IF: 60mA; Peak: 1.2 Amp; (3)LED Power Dissipation @ TA = 25℃ about input LED, PD: 120 mW; Derate above 25℃: 1.41 mW/℃; (4)Total Device Dissipation @ TA = 25℃, PD: 250mW; Derate above 25℃: 2.94 mW/℃; (5)Maximum Operating Temperature, TA: –40 to +85 ℃; (6)Storage Temperature Range, Tstg: –55 to +150℃; (7)Soldering Temperature (10 s), TL: 260 ℃; (8)Isolation Surge Voltage (Pk ac Voltage, 60 Hz, 1 Second Duration), VISO: 7500 Vac(pk).
Features
H11L1 features: (1)Guaranteed Switching Times, ton, toff < 4 us; (2)Built–In On/Off Threshold Hysteresis; (3)High Data Rate, 1 MHz Typical (NRZ); (4)Wide Supply Voltage Capability; (5)Microprocessor Compatible Drive.

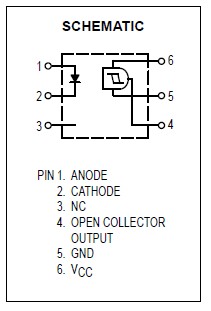

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 H11L1 |
Everlight |
Logic Output Optocouplers Optocouplers |
Data Sheet |
|
|
||||||||||||
|
H11L1. |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
|
H11L1300 |
Fairchild Semiconductor |
Logic Output Optocouplers |
Data Sheet |
Negotiable |
|
||||||||||||
|
H11L1300W |
Fairchild Semiconductor |
Logic Output Optocouplers |
Data Sheet |
Negotiable |
|
||||||||||||
 |
H11L13S |
Fairchild Semiconductor |
Logic Output Optocouplers SM-DIP6 |
Data Sheet |
Negotiable |
|
||||||||||||
|
H11L13SD |
Fairchild Semiconductor |
Logic Output Optocouplers SM-DIP6 |
Data Sheet |
Negotiable |
|
||||||||||||
|
H11L1FM |
Fairchild Semiconductor |
Logic Output Optocouplers Optocoupler Schmitt Trigger |
Data Sheet |
Negotiable |
|
||||||||||||
|
H11L1FR2M |
Fairchild Semiconductor |
Logic Output Optocouplers Optocoupler Schmitt Trigger |
Data Sheet |
Negotiable |
|
||||||||||||
