Product Summary
The ZMY15 is a silicon planar power zener diode. The ZMY15 can be used in stabilizing and clipping circuits with high power rating hermetically sealed, glass silicon diodes.
Parametrics
ZMY15 absolute maximum ratings: (1)Power Dissipation at Tamb = 25°C: 1.0W; (2)Junction Temperature: 150°C; (3)Storage Temperature Range: – 55 to +150°C.
Features
ZMY15 features: (1)Silicon Planar Power Zener Diodes; (2)For use in stabilizing and clipping circuits with higher power rating; (3)The Zener voltages are graded according to the international E24 standard. Smaller voltage tolerances and other Zener voltages are available upon request; (4)These diodes are also available in the DO-41 case with the type, designation ZPY1 … ZPY100.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 ZMY15-GS18 |
Vishay Semiconductors |
Zener Diodes 15 Volt 1 Watt 10% |
Data Sheet |
|
|
||||||||||||
|

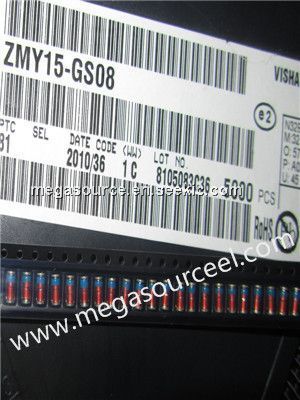

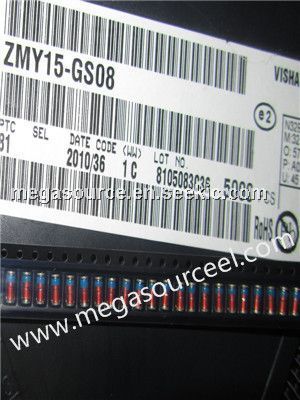

ZMY15-GS08 |
Vishay Semiconductors |
Zener Diodes 15 Volt 1 Watt 10% |
Data Sheet |
|
|
||||||||||||
