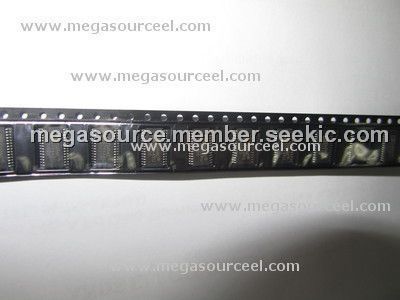

AD9744ARU

Product Summary

The AD9744ARU is a high performance, low power CMOS digital-to-analog converter (DAC). The AD9744ARU is specifically optimized for the transmit signal path of communication systems. All of the devices share the same interface options, small outline package, and pinout, providing an up-ward or downward component selection path based on performance, resolution, and cost. The AD9744ARU offers exceptional ac and dc performance while supporting update rates up to 210 MSPS. The applications of the AD9744ARU include Wideband communication transmit channel, Direct IFs, Base stations, Wireless local loops, Digital radio links, Direct digital synthesis (DDS), Instrumentation.

Parametrics

AD9744ARU absolute maximum ratings: (1)AVDD ACOM: -0.3 to +3.9V; (2)DVDD DCOM: -0.3 to +3.9V; (3)CLKVDD CLKCOM: -0.3 to +3.9V; (4)ACOM DCOM: -0.3 to +0.3V; (5)ACOM CLKCOM: -0.3 to +0.3V; (6)DCOM CLKCOM: -0.3 to +0.3V; (7)AVDD DVDD: -3.9 to +3.9V; (8)AVDD CLKVDD: -3.9 to +3.9V; (9)DVDD CLKVDD: -3.9 to +3.9V; (10)CLOCK, SLEEP DCOM: -0.3 to DVDD + 0.3V; (11)Digital Inputs, MODE DCOM: -0.3 to DVDD + 0.3V; (12)IOUTA, IOUTB ACOM: -1.0 to AVDD + 0.3V; (13)REFIO, REFLO, FS ADJ ACOM: -0.3 to AVDD + 0.3V; (14)CLK+, CLK., CMODE CLKCOM: -0.3 to CLKVDD + 0.3V; (15)Junction Temperature: 150℃; (16)Storage Temperature: -65℃ to +150℃; (17)Lead Temperature (10 sec): 300℃.

Features

AD9744ARU features: (1)High performance member of pin-compatible TxDAC product family; (2)Excellent spurious-free dynamic range performance; (3)SFDR to Nyquist; (4)83 dBc @ 5 MHz output; (5)80 dBc @ 10 MHz output; (6)73 dBc @ 20 MHz output; (7)SNR @ 5 MHz output, 125 MSPS: 77 dB; (8)Twos complement or straight binary data format; (9)Differential current outputs: 2 mA to 20 mA; (10)Power dissipation: 135 mW @ 3.3 V; (11)Power-down mode: 15 mW @ 3.3 V; (12)On-chip 1.2 V reference; (13)CMOS-compatible digital interface; (14)28-lead SOIC, 28-lead TSSOP, and 32-lead LFCSP packages; (15)Edge-triggered latches.

Diagrams
