Product Summary

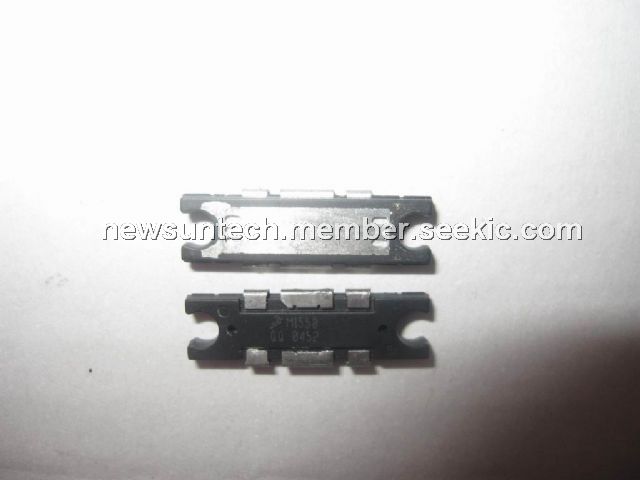

The MRF1550N is a RF Power Field Effect Transistor. The deivce is designed for broadband commercial and industrial applications with frequencies to 175 MHz. The high gain and broadband performance of the MRF1550N make it ideal for large-signal, common source amplifier applications in 12.5 volt mobile FM equipment.
Parametrics
MRF1550N absolute maximum ratings: (1)Drain-Source Voltage, VDSS: -0.5, +40 Vdc; (2)Gate-Source Voltage, VGS: ±20 Vdc; (3)Drain Current ó Continuous, ID: 12 Adc; (4)Total Device Dissipation, PD: 165W; (5)Storage Temperature Range, Tstg: - 65 to +150℃; (6)Operating Junction Temperature, TJ: 200℃.
Features
MRF1550N features: (1)Excellent Thermal Stability; (2)Characterized with Series Equivalent Large-Signal Impedance Parameters; (3)Broadband-Full Power Across the Band: 135-175 MHz; (4)200℃ Capable Plastic Package; (5)N Suffix Indicates Lead-Free Terminations. RoHS Compliant; (6)In Tape and Reel. T1 Suffix = 500 Units per 44 mm, 13 inch Reel.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MRF1550NT1 |
Freescale Semiconductor |
Transistors RF MOSFET Power LDMOS FET HI PWR TO272FN |
Data Sheet |
|
|
|||||||||
