Product Summary

The ATMEGA64L-8MU is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA64L-8MU achieves throughputs approaching 1 MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed.

Parametrics

ATMEGA64L-8MU maximum ratings: (1)Memory Size: 64000 B; (2)Number of I/O Pins: 53; (3)Number of Pins 64; (4)Access Time: 8.00 μs; (5)Clock Speed: 8.00 MHz; (6)Supply Voltage (DC): 5.00 V; (7)Clock Speed: 8.00 MHz (max); (8)Supply Voltage (DC): 5.50 V (max); (9)Lead-Free Status: Lead Free; (10)Mounting Type: Surface Mount; (11)Packaging: Tray; (12)RoHS: Compliant.

Features

ATMEGA64L-8MU features: (1)High-performance, Low-power AVR8-bit Microcontroller; (2)Advanced RISC Architecture; (3)Non-volatile Program and Data Memories; (4)JTAG (IEEE std. 1149.1 Compliant) Interface; (5)Peripheral Features; (6)Special Microcontroller Features; (7)I/O and Packages; (8)Operating Voltages; (9)Speed Grades.

Diagrams

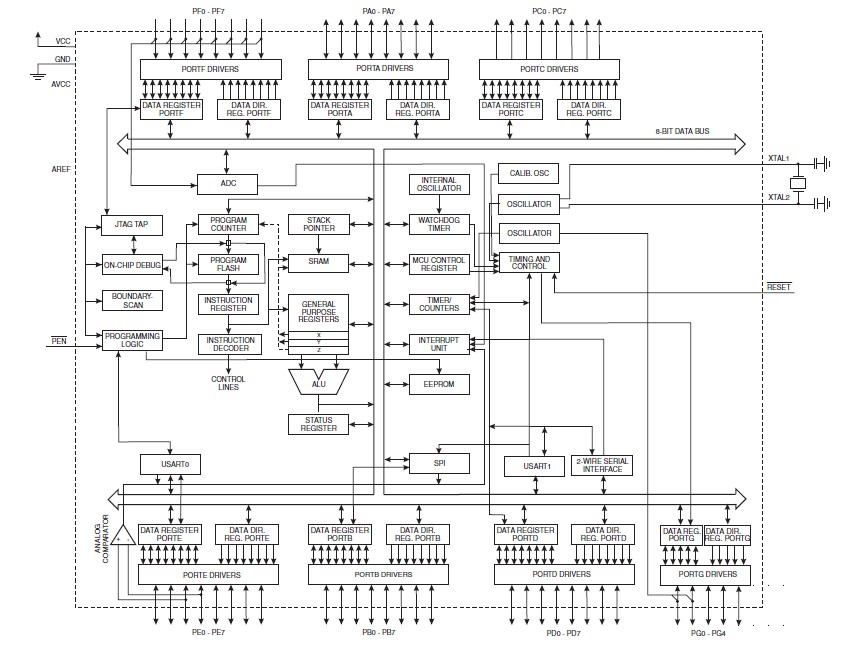

ATMEGA64L-8MU block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ATmega64L-8MU
ATmega64L-8MU
Atmel
8-bit Microcontrollers (MCU) AVR 64K FLASH 2KB EE 4K SRAM ADC 3V
Data Sheet
0-1: $7.10
1-10: $5.92
10-25: $4.45
25-100: $4.03
ATMEGA64L-8MUR
ATMEGA64L-8MUR
Atmel
8-bit Microcontrollers (MCU) AVR 64KB FLSH 2KB EE 4KB SRAM-8MHz, IND
Data Sheet
0-3334: $4.03
3334-4000: $4.03
