Product Summary
The BAS16S is a high-speed switching diode fabricated in planar technology, and encapsulated in a SOD123F small and flat plastic package. The applications of the BAS16S include High-speed switching in hybrid thick and thin-film circuits, Mobile communication, Digital (still) cameras, Personal Digital Assistants (PDA), Personal Computer Memory Card International Association (PCMCIA) cards.
Parametrics
BAS16S absolute maximum ratings: (1)repetitive peak reverse voltage, VRRM: 100 V; (2)reverse voltage, VR: 100 V; (3)forward current, IF: 215 mA; (4)repetitive peak forward current, IFRM: 500 mA; (5)non-repetitive peak forward current, tp = 50 ms, IFSM: 4 A; tp = 1 ms, IFSM: 2 A; tp = 10 ms, IFSM: 1.5 A; (6)total power dissipation, Ptot: 0.38 W; (7)junction temperature, Tj: 150℃; (8)ambient temperature, Tamb: -65 to +150℃; (9)storage temperature, Tstg: -65 to +150℃.
Features
BAS16S features: (1)High switching speed: max. 4 ns; (2)Continuous reverse voltage: max. 100 V; (3)Repetitive peak reverse voltage: max. 100 V; (4)Repetitive peak forward current: max. 500 mA; (5)Small and flat plastic package.

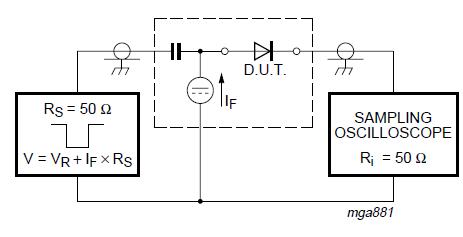

Diagrams
