Product Summary

The BCP54-16 is a NPN Silicon AF Transistor.

Parametrics

BCP54-16 absolute maximum ratings: (1)ollector-emitter voltage,VCEO: 45V; (2)Collector-emitter voltage, VCER: 45V; (3)Collector-base voltage, VCBO 45V; (4)Emitter-base voltage, VEBO: 5V; (5)Collector current, IC: 1 A; (6)Peak collector current, tp ≤ 10 ms, ICM: 1.5A; (7)Base current, IB: 100 mA; (8)Peak base current, IBM: 200A; (9)Total power dissipation, TS ≤ 120℃, Ptot: 2 W; (10)Junction temperature, Tj: 150℃; (11)Storage temperature, Tstg: -65 to 150℃.

Features

BCP54-16 features: (1)For AF driver and output stages; (2)High collector current; (3)Low collector-emitter saturation voltage; (4)Pb-free (RoHS compliant) package; (5)Qualified according AEC Q101.

Diagrams

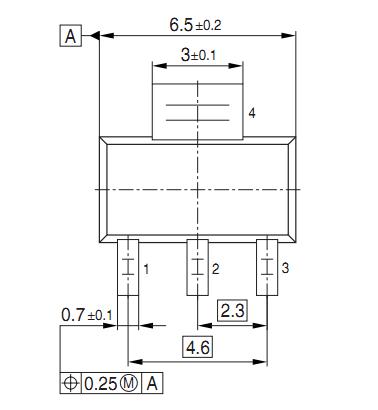

BCP54-16 dimensions
