Product Summary
The CA4800C is a RF Line Wideband Linear Amplifier designed for amplifier applications in 50 ohm systems requiring wide bandwidth, low noise and low–distortion. The CA4800C provides excellent gain stability with temperature and linear amplification as a result of the push–pull circuit design.
Parametrics
CA4800C absolute maximum ratings: (1)Supply Voltage, VCC: 28V; (2)RF Input Power, Pin: +14 dBm; (3)Storage Temperature, Tstg: -40 to +100℃; (4)Operating Case Temperature Range, TC: -20 to +100℃.
Features
CA4800C features: (1)Specified Characteristics at VCC = 24 V for CA4800C; 12 V for CA4812C; 15 V for CA4815C, TC = 25℃: Frequency Range -10 to 1000 MHz, Output Power -400 mW Typ @ 1 dB Compression, f = 900 MHz, Power Gain -17.5 dB Typ @ 1000 MHz, Noise Figure -6.5 dB Typ @ f = 500 MHz, ITO -38 dBm Typ @ 1000 MHz; (2)All Gold Metallization for Improved Reliability; (3)CA4812C is Optimized for 12 V Operation; (4)CA4815C is Optimized for 15 V Operation.

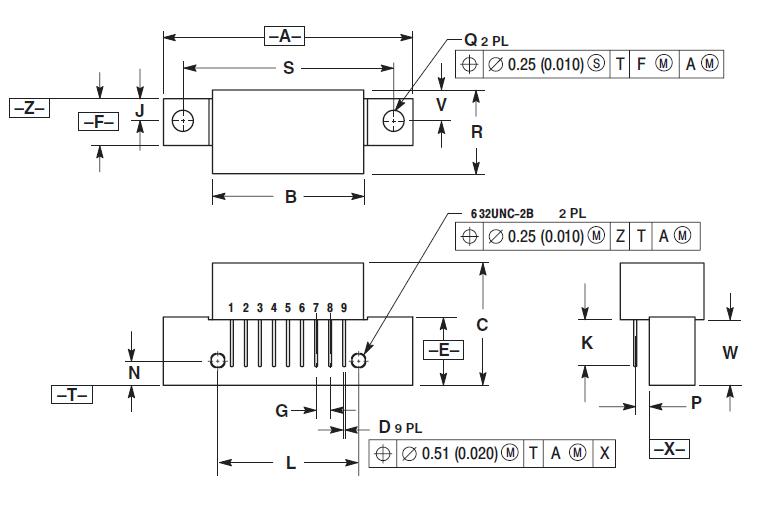

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 CA4800C |
Other |
|
Data Sheet |
Negotiable |
|
||||
