Product Summary

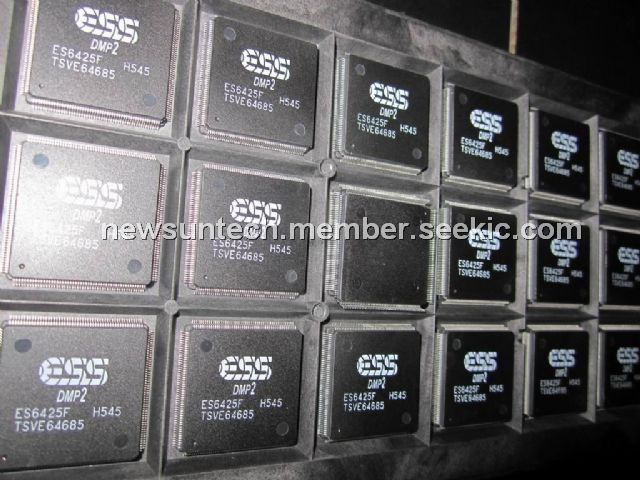

The ES6425 is a high performance single-chip audio/video decoder for a wide series of applications such as networked or nonnetworked/flash memory media players. This second generation of Digital Media Processor ES6425 has an enhanced performance engine to decode MPEG-4 video at D1 resolution with state-of-the-art progressive scan NTSC/PAL video encoder for brilliant and sharp, flickerfree output to the video display. The ES6425 performs video processing to provide highresolution display of MPEG-1, MPEG-2, and MPEG-4 videos and JPEG photos. The integrated NTSC/PAL TVencoder provides composite, S-video, and YUV outputs. The ES6425 includes an On-Screen-Display (OSD) controller to provide a user friendly setup menu to enable or modify the various audio decoding and video display features. A CCIR656/601 digital video output port is also present.

Features

ES6425 features: (1)Single-chip digital audio and video decoder and processor; (2)MPEG-4 Advanced Simple Profile* at full screen D1 video playback (playability is dependent on memory card bandwidth); (3)MPEG-2 video playback (playability is dependent on memory card bandwidth); (4)MPEG-1 video playback; (5)Motion JPEG playback; (6)JPEG photo playback; (7)Progressive JPEG photo playback; (8)MP3 music playback; (9)WMA music playback (Microsoft license required); (10)Dolby Digital decode (ES6425FDF only); (11)AAC audio decode and playback; (12)ESS Music Slideshow; (13)S/PDIF digital audio output; (14)Integrated I2S serial port for up to 5.1 channel audio output and stereo input; (15)Direct interface for IDE devices and flash memory cards including CF, MS, MS Pro, SD, xD, MMC, and SM; (16)DRAM memory controller with interface to 8-bit or 16-bit SDRAM for up to 16 MB of memory.

Diagrams

ES64
ES64
Other

Data Sheet
Negotiable
