CX28250-26

ATM-SONET Physical Layer (PHY), –0.5 to +4.6V, PLL clock and data recovery (CDR) circuit, 156 pin BGA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $10.00~12.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $10.00~12.00

PartNumber:: CX28250-26

Brand:: Mindspeed Technologies, Inc. - MNDSPEED | Pack: BGA | D/C: 03+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. hellen's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-09-06

From Other Seller

Part Number:CX28250-26
US $10.00 - 12.00
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
SIL9185ACTU

US $2.30 - 5.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

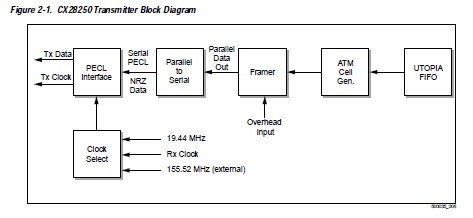

The CX28250-26 is an ATM-SONET Physical Layer (PHY) device with an integrated, PLL clock and data recovery (CDR) circuit. This CX28250-26 has optimized SONET framer functions for mapping ATM cells to SONET payloads for edge switch applications, and optional enhanced feature sets for ATM-WAN access applications. It provides ATM Forum-compliant service termination, and maps the 53-byte cells from an ATM switch fabric or an adaptation layer processor (SAR) into the SONET payload. The CX28250-26 is tailored to meet a wide variety of ATM OC-3 applications. These include WAN terminals, ATM LAN and WAN switches, ATM OC-3 NICs, and Ethernet-ATM uplink cards.

Parametrics

CX28250-26 absolute maximum ratings: (1)Supply Voltage: –0.5 to +4.6V; (2)VGG Pin: +6.0V; (3)Storage Temperature –40℃ to 125℃; (4)Lead Temperature: +240℃ for 10 sec; (5)Junction Temperature: +125℃; (6)Static Discharge Voltage, Human Body Model: ±1500V @ 25℃; (7)Static Discharge Voltage—Charged Device Model: ±400V @ 25℃; (8)Latch-up Current: ±400 mA @ 25℃; (9)FIT Rate Value: TBD; (10)θJA: 40 ℃/W with no airflow,36 ℃/W at 1.5 m/s airflow; (11)θJC: 6.5 ℃/W.

Features

CX28250-26 features: (1)Tested APS software driver available from Mindspeed; (2)Synthesizes a 155.52 MHz clock from an 19.44 MHz input; (3)UTOPIA Level 2 interface; (4)Meets ITU, ANSI, and ATM Forum standards; (5)ATM Forum WIRE interface for PMDs using PECL; (6)D1-D3, D4-D12 external data link; (7)Supports APS (K1/K2 bytes); (8)Line Fail and Path Fail outputs; (9)SRAM-style microprocessor interface for all control and configuration registers; (10)Glueless interface to the CN823x segmentation and reassembly devices; (11)JTAG (IEEE 1149.1a-1993) compliant; (12)8 kHz and 19.44 MHz selectable sync outputs; (13)SONET overhead processing; (14)Automatic collection of one-second statistics; (15)Low power consumption-500 mW; (16)3.3 V, (–40℃ to 85℃); (17)Package: 156 pin BGA.
