Product Summary

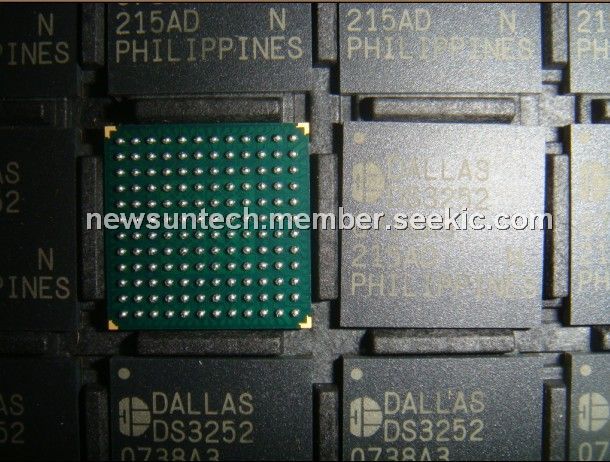

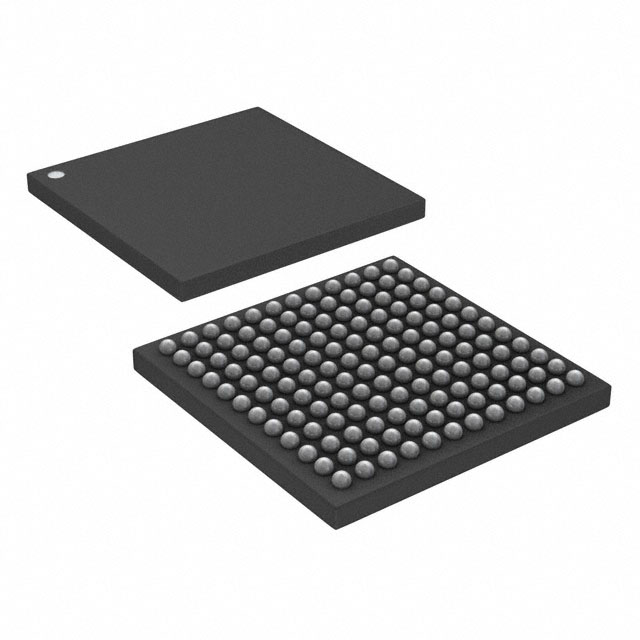

The DS3252N is a dual line interface unit (LIU). It performs the functions necessary for interfacing at the physical layer to DS3, E3, or STS-1 lines. Each LIU has independent receive and transmit paths and a built-in jitter attenuator. An on-chip clock adapter generates all line-rate clocks from a single input clock. Control interface options include 8-bit parallel, SPI, and hardware mode. The applications of the DS3252N include SONET/SDH and PDH Multiplexers, Digital Cross-Connects, Access Concentrators, ATM and Frame Relay Equipment, Routers, PBXs, DSLAMs and CSU/DSUs.
Parametrics
DS3252N absolute maixmum ratings: (1)Voltage Range on Any Lead with Respect to VSS (except VDD): -0.3V to +5.5V; (2)Supply Voltage Range (VDD) with Respect to VSS: -0.3V to +3.63V; (3)Ambient Operating Temperature Range: -40 to +85℃; (4)Junction Operating Temperature Range: -40 to +125℃; (5)Storage Temperature Range: -55 to +125℃.
Features
DS3252N features: (1)Pin-Compatible Family of Products; (2)Each Port Independently Configurable; (3)Standards-Compliant Transmit Waveshaping; (4)Three Control Interface Options: 8-Bit Parallel, SPI, and Hardware Mode ; (5)Built-In Jitter Attenuators can be Placed in Either the Receive or Transmit Paths; (6)Jitter Attenuators Have Provisionable Buffer Depth: 16, 32, 64, or 128 Bits; (7)Built-In Clock Adapter Generates All Line-Rate Clocks from a Single Input Clock (DS3, E3, STS-1, OC-3, 19.44MHz, 38.88MHz, 77.76MHz); (8)B3ZS/HDB3 Encoding and Decoding; (9)Minimal External Components Required; (10)Local and Remote Loopbacks; (11)Low-Power 3.3V Operation (5V Tolerant I/O); (12)Industrial Temperature Range: -40 to +85℃; (13)Small Package: 144-Pin, 13mm × 13mm Thermally Enhanced CSBGA; (14)Drop-In Replacement for DS3151/52/53/54 LIUs; (15)IEEE 1149.1 JTAG Support.
Diagrams
