Product Summary
The DTA114ESA is a Digital transistor.
Parametrics
DTA114ESA absolute maximum ratings: (1)supply voltage, VCC: -50V; (2)input voltage, VIN: -40 to 10V; (3)output current, IO: -50mA; IC(max): -100mA; (4)power dissipation, PD: 300mW; (5)junction temperature, Tj: 150℃; (6)storage temperature, Tstg: -55 to 150℃.
Features

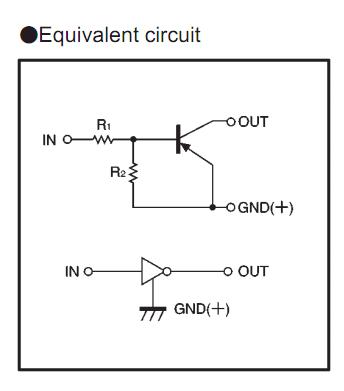

DTA114ESA features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit); (2)The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advan- tage of almost completely eliminating parasitic effects; (3)Only the on/off conditions need to be set for operation, making device design easy.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DTA114ESA |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
DTA114ESATP |
ROHM Semiconductor |
Transistors Switching (Resistor Biased) PNP 50V 50MA |
Data Sheet |
Negotiable |
|
||||
