Product Summary

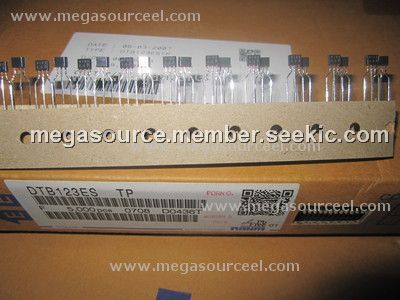

The DTB123ES is a Digital transistor.
Parametrics
DTB123ES absolute maximum ratings: (1)Supply voltage, VCC: -50V; (2)Input voltage, VIN: -12V; 10V; (3)Output current, IC: -500mA; (4)Power dissipation, Pd: 200mW; (5)Junction temperature, Tj: 150℃; (6)Storage temperature, Tstg: -55 to 150℃.
Features
DTB123ES features: (1)Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit); (2)The bias resistors consist of thin-film resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects; (3)Only the on / off conditions need to be set for operation, making device design easy.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DTB123ESTP |
ROHM Semiconductor |
Transistors Switching (Resistor Biased) PNP 50V 500MA |
Data Sheet |
Negotiable |
|
||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||
 |
DTB113EKT146 |
ROHM Semiconductor |
Transistors Switching (Resistor Biased) DIGITAL PNP 50V 500MA SMD3 |
Data Sheet |
|
|
||||||||||||
|
DTB113ESTP |
ROHM Semiconductor |
Transistors Switching (Resistor Biased) PNP 50V 500MA |
Data Sheet |
Negotiable |
|
||||||||||||
|
DTB113ZKT146 |
ROHM Semiconductor |
Transistors Switching (Resistor Biased) DIGIT PNP 50V 500MA |
Data Sheet |
|
|
||||||||||||
|
DTB113ZSTP |
ROHM Semiconductor |
Transistors Switching (Resistor Biased) PNP 50V 500MA |
Data Sheet |
|
|
||||||||||||
|
DTB114EKT146 |
ROHM Semiconductor |
Transistors Switching (Resistor Biased) PNP 50V 500MA |
Data Sheet |
|
|
||||||||||||
|
DTB114ESTP |
ROHM Semiconductor |
Transistors Switching (Resistor Biased) PNP 50V 500MA |
Data Sheet |
Negotiable |
|
||||||||||||
